Product Show

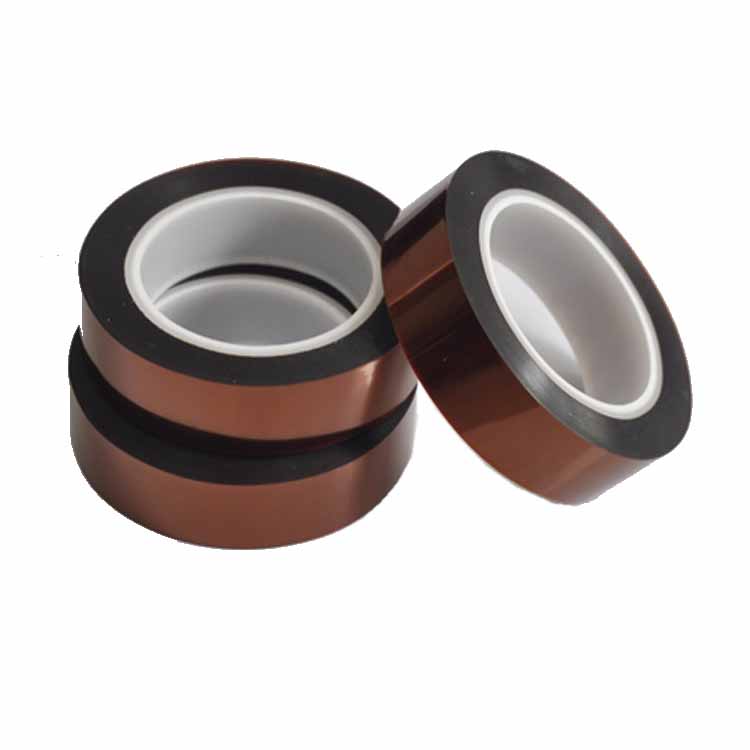

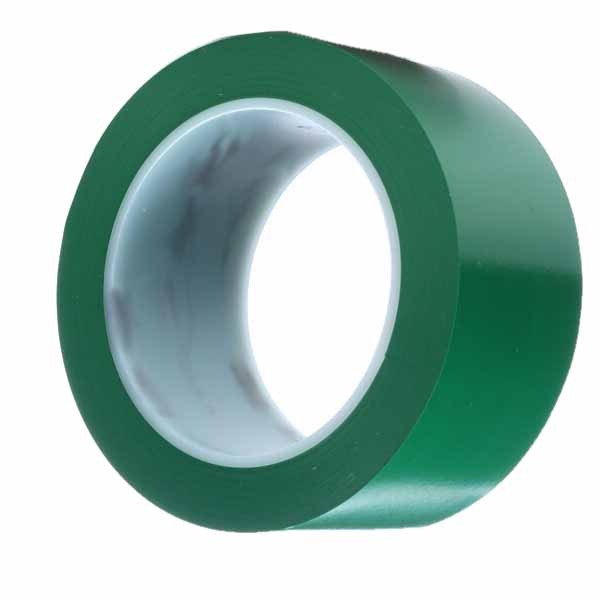

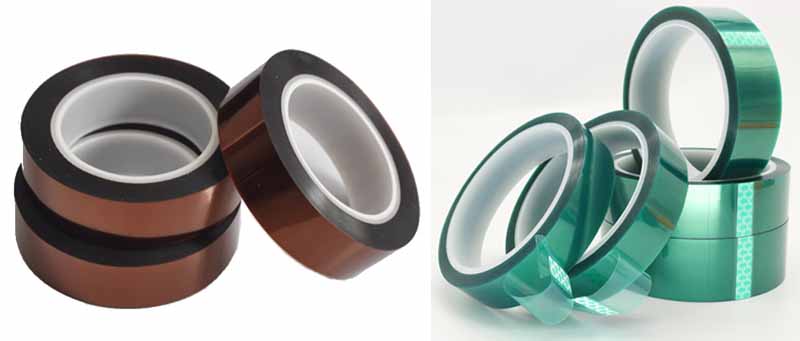

The Adhesive Tape for the Packing of Lithium Battery is made of PET film backing and single side coated with acrylic adhesive. It's provided with high performance in electrical insulation and heat-resistance, excellent adhesion and can be easily peeled off without residue. The material is environmental friendly and ROHS complied. Used on parts of lithium battery and for adhesion, packing, wrapping and holding purposes on battery assembling process.
Product Application
This tape is used to insulate electric wires and anything else that may conduct electricity.
Technical Parameters
| Item | Lithium Battery Strapping Tape 30m | |||
| Backing | PET | PET | PET | PET |
| Adhesive | Acrylic | Acrylic | Acrylic | Acrylic |
| Total Thickness(mm) | 0.030 | 0.035 | 0.050 | 0.055 |
| Color | Dark Green/Blue/Yellow/Amber | Dark Green/Blue/Yellow/Amber | Dark Green/Blue/Yellow/Amber | Dark Green/Blue/Yellow/Amber |
| Peel Adhesion（N/25mm) | 1.5-2.5 | 2.5-3.5 | 6-8 | 6-8 |
| Tensile strength（N/25mm) | 50 | 80 | 85 | 95 |
| Breakdown Voltage（KV） | 3.5 | 3.5 | 5 | 5 |
| Unwind Force | Light | Light | Medium | Light |
| Standard Width(mm) | Customized | |||
| Standard Length(Meter) | 100/200 | |||
The above parameters are for reference, ordering the contract shall prevail.
Product Advantage
Multiple varieties
Purchasing raw materials according to requirements, meeting user requirements in different specifications, different varieties, different materials and different quantities.
Technical advantages
Since its establishment, it has adhered to the road of combining production, learning, and research, improved the company's technology and process equipment, and committed to the technological update and transformation of new products. The company has focused on joint research and development of new products to obtain sustainable competitive advantages for the company's long-term development .
Quality cost advantage
All the materials used by the company are through international environmental protection, raw materials are directly supplied, and the cost is low; an efficient and high-quality production team improves production efficiency; a complete industrial chain operation model stands out in market operations.
Purchasing raw materials according to requirements, meeting user requirements in different specifications, different varieties, different materials and different quantities.
Technical advantages
Since its establishment, it has adhered to the road of combining production, learning, and research, improved the company's technology and process equipment, and committed to the technological update and transformation of new products. The company has focused on joint research and development of new products to obtain sustainable competitive advantages for the company's long-term development .
Quality cost advantage
All the materials used by the company are through international environmental protection, raw materials are directly supplied, and the cost is low; an efficient and high-quality production team improves production efficiency; a complete industrial chain operation model stands out in market operations.
